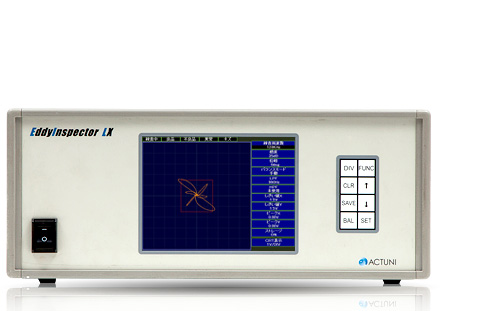

EddyInspector LX - Eddy Current Flaw Detector for Production Lines
Eddy Current Flaw Detector for Production Lines
The EddyInspector LX is an eddy current flaw detector for production lines that offers full basic functionality and maximum cost-efficiency.
Focusing on ease of use and viewing, the detector is designed to be user-friendly, even for inexperienced operators.
Main Features

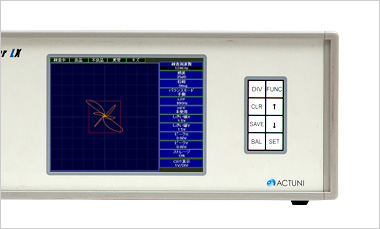

- A 6.5-inch TFT color LCD with eight buttons for operation
-
The EddyInspector LX employs a TFT color LCD that is easy to read even in bright light. Despite being a digital display, it achieves analog-like smooth plotting. Also, taking advantage of its digital design, it offers a storage feature that can display waveform traces. Operating the detector is as easy as using eight setup buttons, so even inexperienced operators can quickly master its use.
- Analog signal outputs
- The EddyInspector LX has an analog output (BNC connector) for each of the x and y components of flaw detection signals so that the signals can be recorded by a recorder. The detector also comes with a MARK output (BNC connector) used to output markings.

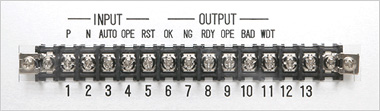

- A wealth of control inputs and outputs
-
For reliable inspection, the EddyInspector LX offers inputs and outputs not only for control but also for signal anomalies, such as a disconnected sensor or a faulty CPU.
- Single- and dual-channel types
- You can choose a single- or dual-channel type to suit your needs.
Download the latest Adobe Acrobat Reader from https://www.adobe.com/.
Specifications
| Test Frequency | 2, 4, 8, 16, 32, 64, 128, 256, and 512 kHz (selectable) |
|---|---|
| Probe Type | Self-induction or mutual-induction |
| AC Amplification | 20 dB fixed |
| Detection Method | X-Y synchronous detection |
| L.P.F. | 10, 100 - 900 (100 Hz steps), 990 Hz -24 dB/oct |
| H.P.F. | OFF, 5, 10 - 400 Hz (10 Hz steps) -24 dB/oct |
| Sensitivity | 0 dB - ＋60 dB (1 dB steps) |
| Phase | 0 deg - 359 deg (1 deg steps) |
| Bridge Balance | Manual balance（approx. 100 ms） Follow-up balance (2 speeds) The follow-up speed is adjustable between 0000 - 0FFF. |
| Testing |
Window comparator around the origin. ±0.20 V - ±9.95 V（0.05 V steps; each X and Y) or DISABLED |
| Display | 6.5 inch TFT color LCD Parameters, OPE, OK, NG, Defect, Error and ET signal view |
| Language | Japanese and English (option) |
| Environmental | Temperature range: 5 ℃ - 40 ℃, Humidity: 30 - 85 ％ (without condensation) |
| Inputs / Outputs | ・Analog outputs: DC ±10 V (X and Y signal)（BNC connector） ・MARK output for a recorder(O.C.)（BNC connector) ・External control inputs（terminal block） P(+12 - +24 V power supply)、N（power GND)、AUTO、OPE、 ・External control outputs (terminal block) RDY、OPE、OK、NG、BAD、WDT |
| Power | AC100 - 240 V ±10 % 50 / 60 Hz single phase |
| Dimensions | W: 370 mm H: 149 mm D: 350 mm （not including rubber legs and connecters.） |
Video
- Demo Video
-
This video demonstrates how a single-channel detector
EddyInspector LX can be used to search for two artificial flaws.
